Goodall JumpStart Kohler Generator Air compressor - $5,500 (Morris County)
QR Code Link to This Post

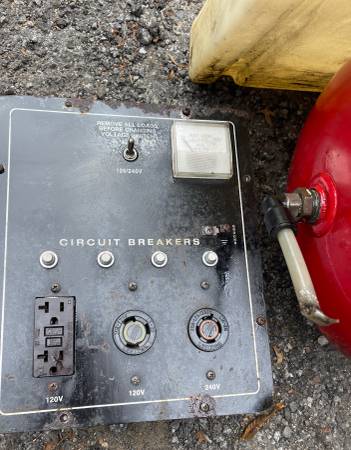

Outlet panel. It ran when removed and had been stored in our shop. I took these pictures outside after the removal. We planned to put it in another truck however things have changed.

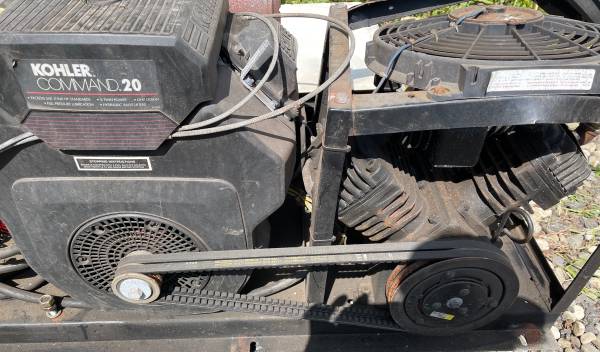

Per the manufacture this is a 12 volt, 700 amp, 23 CFM @ 100 psi, 150 psi max, measures 30"W x 40.5"D x 21"H, weights 475 lbs. It has an electric start, air cooled Kohler OHV V-twin gasoline engine model “Command 20.” It has the industrial plug to insert your jumper cables in which are not included. It is a really well thought out and designed unit.
This is an amazing unit for having onboard electric for your devices. It has the power to jump start anything. It has a Goodall air compressor model SUH43A that takes oil isn’t one of these silly “oil free” units. This machine has only 364 hours on it. I have the detailed owners manual for the machine as well. I am not sure how it connects to the main vehicle
Battery to start and do not have the time to figure it out. The hose that is coming out of the front of the unit is the drain for the generator oil changes. The hose coming out of the unit goes to the air tank. The hose that has the fuel filter on top of the tank connects to the fuel tank. This is everything I know about the unit.
From experience
With our other Goodall products, they have great customer service and always email us back the next day.
Here is some other information from the manufacturer.
General Features
* Electric start, air cooled Kohler OHV V-twin gasoline engine.
* Single stage air compressor, 23 CFM @ 100 psi, 150 psi max. Air tank required, sold separately.
* Volt and amp meter to monitor boosting output
* Voltage Control provides regulated voltage that is safe for vehicles and on-board electronics
* Reverse Current Shutdown Protection eliminates expensive repairs to the Start•All® if the unit runs out of gas
* Reverse Polarity Protection will not allow the Start•All® to be turned on if the cables are not hooked up correctly
* Polarity and low battery LED indicators confirm proper connections
* Antizap surge protection provides safer boosting
* Single DC boosting switch for easy operation

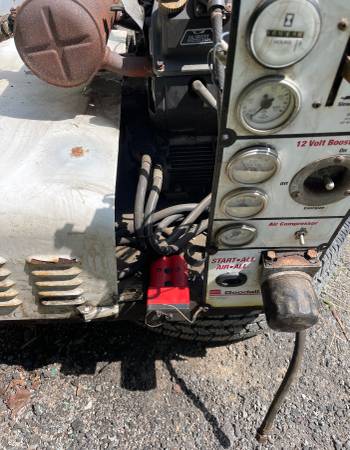

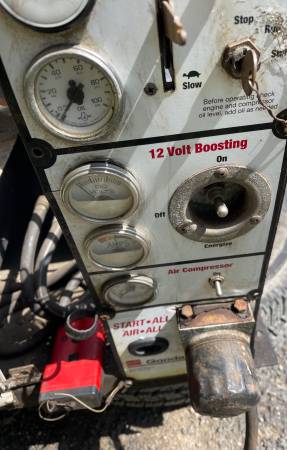

The operation panel includes:
* Oil pressure gauge
* Air pressure gauge
* Hour meter
* Voltmeter
* Ammeter
* DC boosting switch
* Air compressor switch
* Remote oil filter
* Engine oil drain hose
