AC/DC MIL POWER SUPPLIES: +/15 DA100-15, DUAL +5 DA200X05-5, +5 VDC DA - $5 (West Milford)
condition:
salvage
make / manufacturer:
ABBOTT
QR Code Link to This Post
Three types available. Listing is for one you must tell me which one you want. If you are interested in more, I will offer quantity discount, but you must contact me. If you want me to ship contact me for hipping quote.

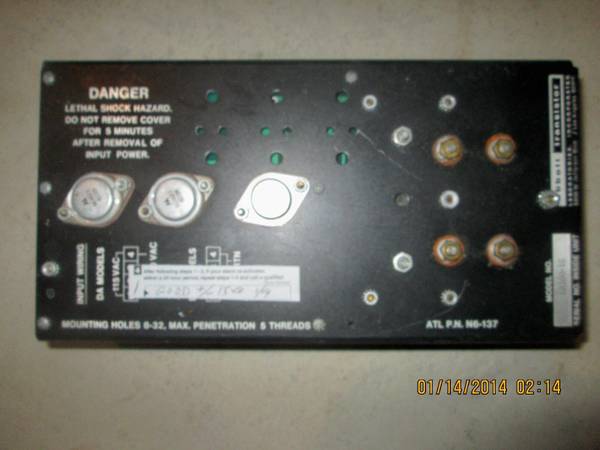

Unit 1 +/-15VDC. (parts) P/N on nameplate is DA100-15, alternate P/N is N6-137. Input 110/220VAC.Dual outputs: +15VDC and -15VDC. All I/O on terminal board. Tested for output voltage at 110VAC 60Hz was working and then quit! +15 output has remote sensing. -15 has no sensing. Two units available.

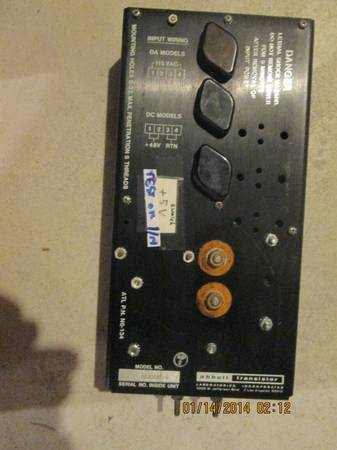

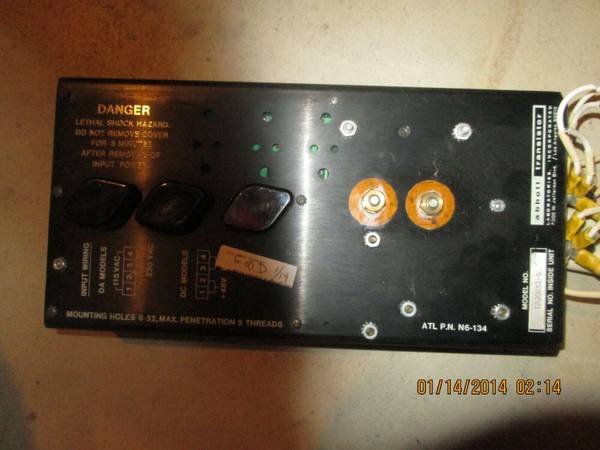

Unit 2 Dual +5VDC (working/parts) P/N on nameplate is DA200X05-5, alternate P/N is N6-134. Input 110/220VAC.Dual outputs: +5VDC on large terminals and +5VDC on "Jones" strip terminal board. Both outputs tested for output voltage at 110VAC 60Hz, with 1 amp load.
Two units available that have been tested. Two units for parts.

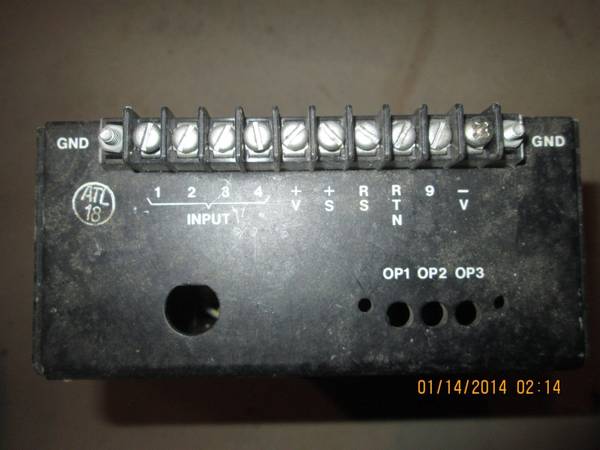

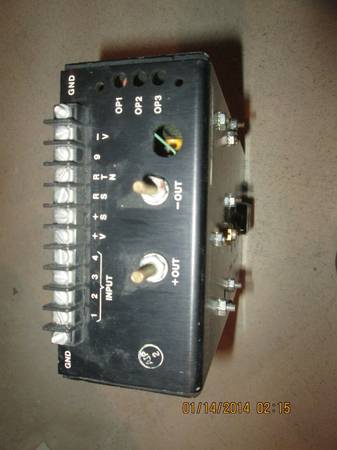

Unit 3 Dual +5 VDC (parts) P/N on nameplate is DA50-5, alternate P/N is N6-138. Input110/220VAC. One 5VDC output, with sensing, on terminal board. (Sensing terminals must be connected). Tested for output voltage at 110VAC 60Hz)- was ok but then no output. One unit available.
Some idea of what’s inside these units:
(2) 370mfd 200VDC caps
(1) 2200mfd 45 VDC cap
(4) 1N3880 diodes
(1) LAS1512 Transistor
(2) MJ423 Transistors
Plus lots of transformers, chokes and control circuitry
Please check photos and ask any questions.
Thanks for looking.
